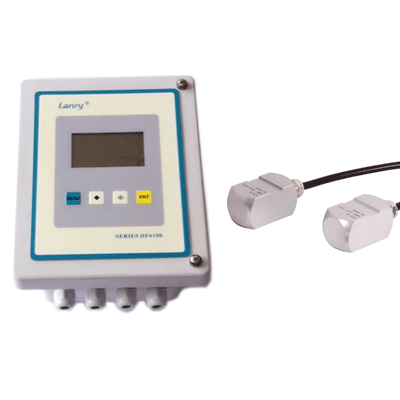

DF6100-EC Wall-mounted Doppler Ultrasonic Flow Meter

DF6100-EC:

uIt is suitable for pipe sizes ranging from 40 to 4000mm

uFor dirty liquids, a certain amount of air bubbles or suspended solids shall be contained

uExcellent low flow rate measurement ability, low to 0.05m/s

uA wide range of flow measurement, high flow rate can reach 12m/s

uHigh-temperature transducer is suitable to liquids of -35℃ ~ 200℃

uDo not need to shut down the pipe flow when installing the transducers

uUser-friendly configuration

u4-20mA, Relay Totalizer and Relay Alarm outputs

uAccuracy: 2.0% Calibrated span

DF6100-EC Wall-mounted Doppler Ultrasonic Flow Meter is designed to measure volumetric flow of liquid within closed conduit, the pipe line must be full of liquids, and there must be a certain amount of air bubbles or suspended solids in liquid.

The Doppler ultrasonic flow meter can display flow rate and flow totalizer, etc., and is configured with 4-20mA, Relays for Totalizer and Alarm outputs.

Features：

It is suitable for pipe sizes ranging from 25 to 4000mm
For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
Excellent low flow rate measurement ability, low to 0.05m/s
A wide range of flow measurement, high flow rate can reach 12m/s
High-temperature transducer is suitable to liquids of -35℃ ~ 200℃
Do not need to shut down the pipe flow when installing the transducers
User-friendly configuration
4-20mA, Relay Totalizer and Relay Alarm outputs
Accuracy: 2.0% Calibrated span

Specifications: Transmitter

Measurement principle	Doppler ultrasonic
Resolution	0.5mm/s
Repeatability	0.2% of reading
Accuracy	0.5% -- 2.0% F.S.
Response time	2-60s for optional
Flow Velocity Range	0.05- 12 m/s
Liquid Types Supported	Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron.
Power Supply	AC: 85-265V DC: 24V/500mA

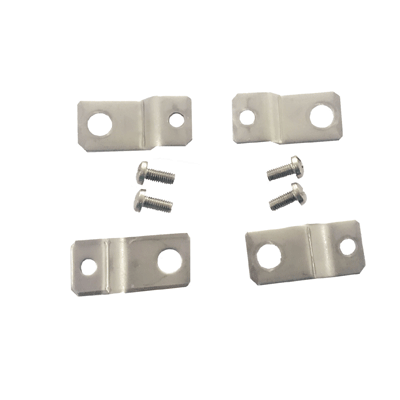

Enclosure type	Wall-mounted
Degree of protection	IP66 according to EN60529
Operating temperature	-20℃ to +60℃
Housing material	Fiberglass
Measurement Channels	1
Display	2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable)
Units	User Configured (English and Metric)
Rate	Rate and Velocity Display
Totalized	gallons, ft³, barrels, lbs, liters, m³,kg
Communication	4-20mA,relays for Totalizer and alarm output
keypad	6pcs buttons
Size	244(h)196(w)144(d)mm
Weight	2.4kg

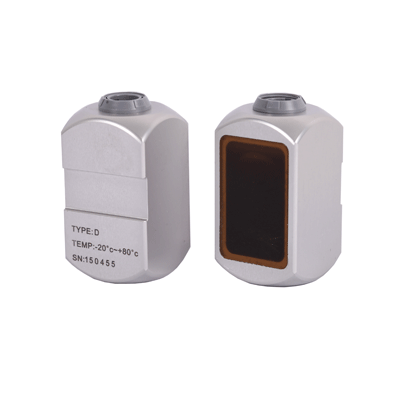

Specifications: Transducer

Transducers Type	Clamp-on
Degree of protection	IP65. IP67 or IP68 according to EN60529
Suited Liquid Temperature	Std. Temp.: -35℃~85℃ for short periods up to 120℃
Suited Liquid Temperature	High Temp.: -35℃~200℃ for short periods up to 250℃
Pipe diameter range	40-4000 mm
Transducer Size	60(h)34(w)32(d)mm
Material of transducer	Stainless steel
Cable Length	Std: 10m
