DOF6000-W:

u 20 coordinate points to describe the river’s shape of cross section.

uOne instrument can measure the velocity, depth and conductivity at same time.

u Velocity Range : 0.02mm/s to 10m/s bi-directional, accuracy is 1%.

u Depth Range: 0 to 10m

u Measure velocity in both forward flow and back flow.

uDepth is measured by both the pressure sensor and ultrasonic level sensor principles.

u With coordinate correction and pressure compensation function.

uIP68 Epoxy-sealed body design, long time under water.

u RS485/MODBUS output, can contact computer directly.

DOF6000-P:

u 20 coordinate points to describe the river’s shape of cross section.

uOne instrument can measure the velocity, depth and conductivity at same time.

uVelocity Range : 0.02mm/s to 10m/s bi-directional, accuracy is 1%.

u Depth Range: 0 to 10m

uMeasure velocity in both forward flow and back flow.

u Depth is measured by both the pressure sensor and ultrasonic level sensor principles.

u With coordinate correction and pressure compensation function.

uIP68 Epoxy-sealed body design, long time under water.

u RS485/MODBUS output, can contact computer directly.

QSD6537：

u20 coordinate points to describe the river’s shape of cross section.

uOne instrument can measure the velocity, depth and conductivity at same time.

uVelocity Range : 0.02mm/s to 10m/s bi-directional, accuracy is 2%.

uDepth Range:  0 to 10m

uMeasure velocity in both forward flow and back flow.

uDepth is measured by both the pressure sensor and ultrasonic level sensor principles.

uWith coordinate correction and pressure compensation function.

uIP68 Epoxy-sealed body design, long time under water.

uRS485/MODBUS output, can contact computer directly.

TF1100-EC:

   u Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.

u Wide liquid temperature range: -35℃~200℃.

u  Data logger function.

u  Thermal energy measurement capability can be optional.

u  For commonly used pipe materials and diameters from 20mm to over 6.0m.

u  Wide bi-directional flow range of 0.01 m/s to 12 m/s.

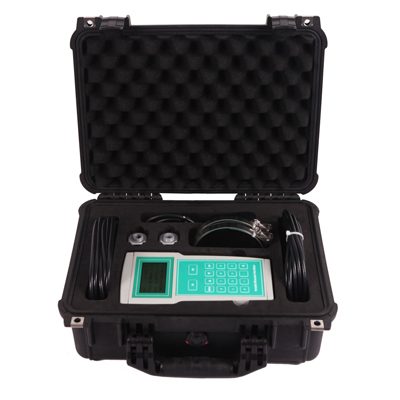

TF1100-CH:

u14 hours battery (rechargeable), back-lit 4 lines display.

uData logger function.

uCan be used for mobile measurement, flow rate calibration, data comparing, meters running status checking.

uNon-invasive transducers.

uWide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range: -35℃~200℃.

uWorks reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.

uLightweight and easily transportable in box.

TF1100-EH:

u14 hours battery (rechargeable), back-lit 4 lines display.

uData logger function.

uCan be used for mobile measurement, flow rate calibration, data comparing, meters running status checking.

uNon-invasive transducers.

uWide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range: -35℃~200℃.

uWorks reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.

uLightweight and easily transportable in box.

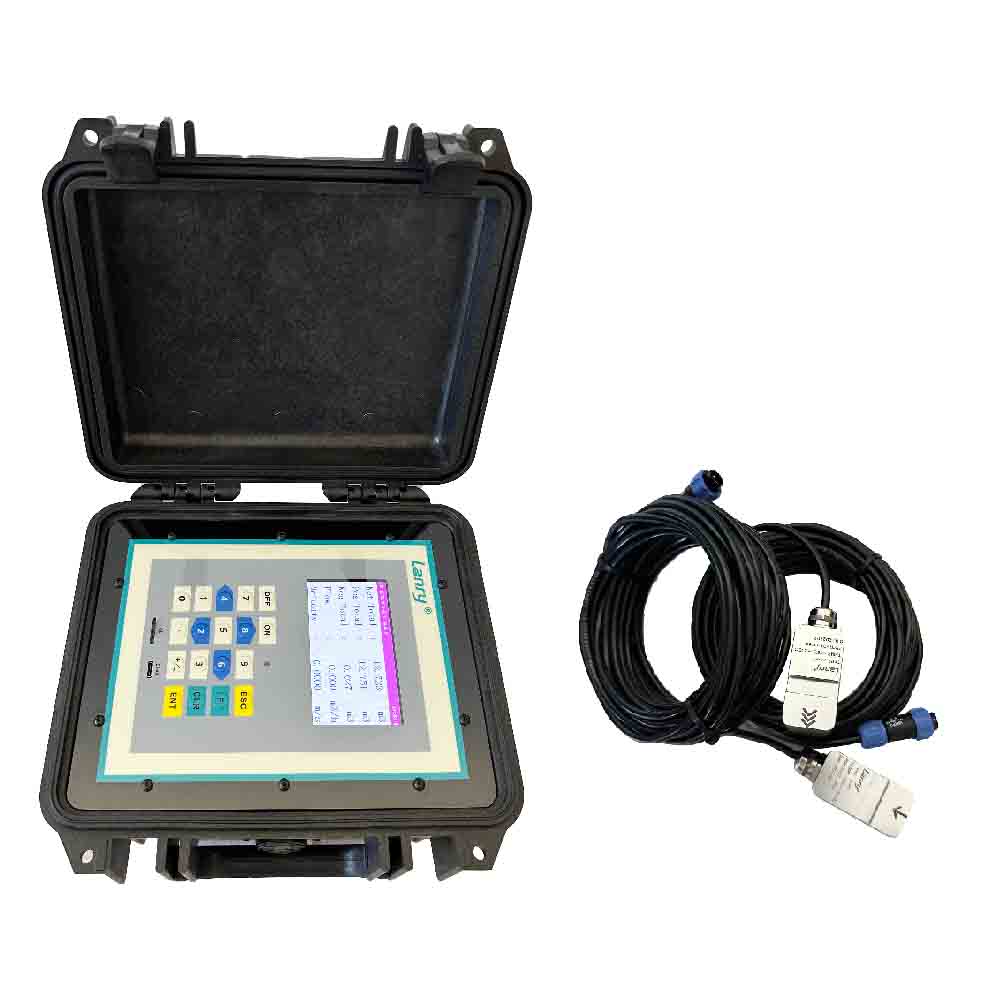

TF1100-EP：

 u   50-hour battery (rechargeable), 4.3'' color LCD multi-line display all integrated into a rugged, watertight enclosure.

u   Data logger function.

u   The heat measurement function by configuring with paired temperature sensors.

u   Non-invasive transducers.

u   Wide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range:  -35℃~200℃.

u   Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.

u   Lightweight and easily transportable in box.

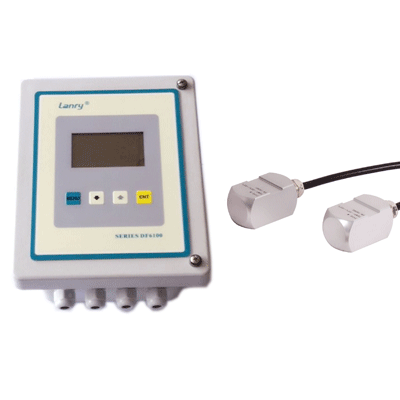

DF6100-EC:

uIt is suitable for pipe sizes ranging from 40 to 4000mm

uFor dirty liquids, a certain amount of air bubbles or suspended solids shall be contained

uExcellent low flow rate measurement ability, low to 0.05m/s

uA wide range of flow measurement, high flow rate can reach 12m/s

uHigh-temperature transducer is suitable to liquids of -35℃ ~ 200℃

uDo not need to shut down the pipe flow when installing the transducers

uUser-friendly configuration

u4-20mA, Relay Totalizer and Relay Alarm outputs

uAccuracy: 2.0% Calibrated span

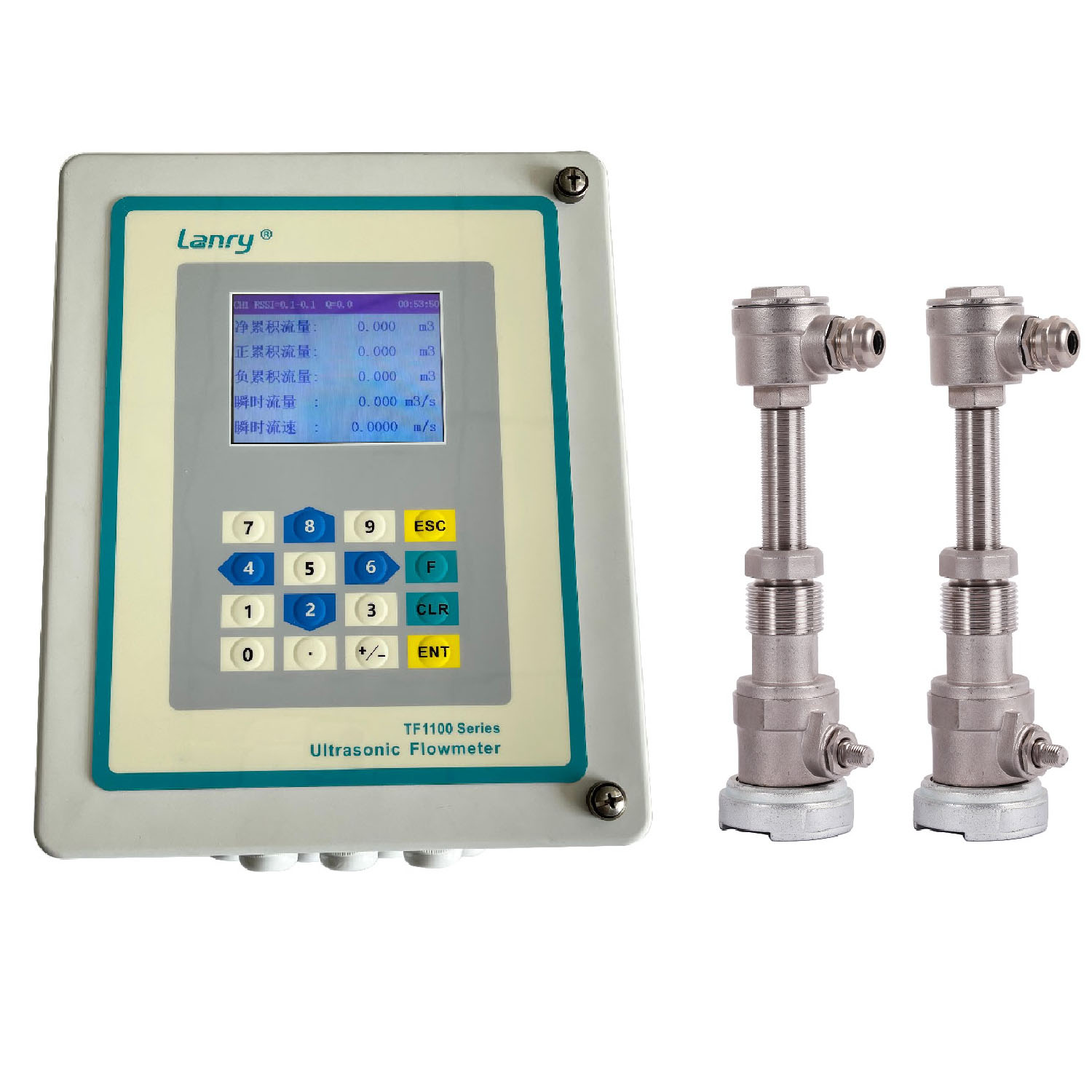

TF1100-EI:

u     Hot-tapped installation, no pipe line flow interrupted.

u     No moving parts, no pressure drop, no maintenance.

u     Spool-piece transducer for best accuracy and better long-term stability.

u     High temp. Insertion transducers are suitable for high temperature of -35℃~150℃.

u     Wide bi-directional Flow range of 0.03 to 36 m/s, and wide range of pipe sizes from DN65 to DN6000.

u    Data logger function.

u     The heat measurement function by configuring with paired temperature sensors

DF6100-EH：

uRechargeable battery can work up to 14 hours

uIt is suitable for pipe sizes ranging from 40 to 4000mm

uFor dirty liquids, a certain amount of air bubbles or suspended solids shall be contained

uExcellent low flow rate measurement ability, low to 0.05m/s

uA wide range of flow measurement, high flow rate can reach 12m/s

uHigh-temperature transducer is suitable to liquids of -35℃ ~ 200℃

uDo not need to shut down the pipe flow when installing the transducers

uUser-friendly configuration

u4-20mA, Relay Totalizer and Relay Alarm outputs

uAccuracy: 2.0% Calibrated span

       DF6100-EP：

uRechargeable battery can work up to 50 hours

uIt is suitable for pipe sizes ranging from 40 to 4000mm

uFor dirty liquids, a certain amount of air bubbles or suspended solids shall be contained

uExcellent low flow rate measurement ability, low to 0.05m/s

uA wide range of flow measurement, high flow rate can reach 12m/s

uHigh-temperature transducer is suitable to liquids of -35℃ ~ 200℃

uDo not need to shut down the pipe flow when installing the transducers

uUser-friendly configuration

u4-20mA, Relay Totalizer and Relay Alarm outputs

uAccuracy: 2.0% Calibrated span

DF6100-EI：

u It is suitable for pipe sizes ranging from 65 to 4000mm

u For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained

u Excellent low flow rate measurement ability, low to 0.05m/s

u A wide range of flow measurement, high flow rate can reach 12m/s

u  High-temperature transducer is suitable to liquids of -35℃ ~ 150℃

u Do not need to shut down the pipe flow when installing the transducers

u User-friendly configuration

u 4-20mA, Relay Totalizer and Relay Alarm outputs

u Accuracy: 2.0% Calibrated span

  UOL:

uMultiple functions,with calculating,control,transmitting and other functions.

uMatch with various weir tank. Right-angle triangle weir,rectangular weir,groove, parshall flume, throat channel slot.

uAccurate measurement,automatic temperature compensation function,automatic filtering system,strong anti-jamming.

uAccurate measurement in colder regions with electric heat tracing sensor.

uWith IR remote control, easy to operate.

uLarge screen display,double line 14 bit LCD liquid crystal display (with backlight),characters of the man-machine interface.

uWith RS485 serial communication,the standard MODBUS RTU protocol,can communicate with Ethernet device,PC,PLC and DCS.

uCan provide up to 6 relays,can set the upper limit and lower limit alarm and control (instantaneous flow rate and water level),can be set high,low and fault alarms.

MF1010/MF1020:

1, Modular transmitter design: Plug & Play”.

2, Capacitive touch buttons for keypad.

3. Accuracy ±0.5%(0.1 - 10 m/s) of actual value, sizes from DN10 to DN1000, repeatability：0.2%.

4. Modbus RTU can be used with all the communication modules.

   Analogue outputs optional: Current 4-20 mA, Pulse, Relay（4pcs）,Hart.

   Digital outputs (communication) optional: USB, RS232, RS485, .

   Data-logging on a standard micro-SD

5. Power supply 12VDC /24VDC/90-250VAC or battery is available. Battery life up to 6 years (15 years with external battery pack).

6. Digital communication RS485 allows communication between the transmitter and the sensor for up to 1000 m range.

Features

◆ Low starting flow rate, minimum flow rate 1/3 of traditional water meter.

◆ Water temperature detection, low temperature alarm.

◆ No moving part, no wear, long term stable operation.

◆ Above 10 years shelf life.

◆ Installation at any angel, no influence for measurement accuracy.

◆ Ultrasonic signal quality detection.

◆ Photosensitive button, IP 68 design, longtime under water working.

◆ Support optical, RS485 and wired & wireless M-bus communication interfaces.

◆ Complies to MODBUS RTU and EN 13757 communication protocol.

◆ Compile to drinkable water standard requirement.
