Transmitter:

Measurable media

Conductive fluids

Min. media electrical conductivity

≥5us/cm or ≥20us/cm for demineralized water

Flow range

0.1 to 10m/s

Display values

Actual flow(m³/h l/s, l/m, US.gal/min, UK.gal/min), volume(m³,l, US.gal, UK.gal),

Positive, negative, total volume, sensor temperature

Accuracy

±0.5%(0.1-10m/s)

Power supply options

85-265VAC, 24VDC,12VDC or battery

Communication protocol

Modbus RTU

Analogue outputs

4-20mA, Pulse, Relay(4pcs), Hart

Digital outputs(communication)

USB, RS232,RS485,GPRS

Data logger

Micro SD card

Flow direction

Bi-directional measurement

Ambient temperature

 -20℃ to 60℃

Display

LCD, contrast setup

Controls

6pcs touch buttons (IP67 Transmitter); 6pcs optical buttons (IP68 Transmitter)

Low flow cut-off

OFF, 0.5%, 1%, 2%, 5%, 10% of flow on

Weight

2 kgs

Housing material

Aluminum

Housing dimensions

ø105*166mm

Electronics protection

Standard IP67, IP68 optional

Other features

Auto-diagnostics, Muti-language options (English and Chinese), Test of excitation coils, Empty pipe detection, Zero flow adjustment and Flow simulator.

Sensor

Connection types

GB, DIN, ANSI, JIS

Nominal size

10-1000mm(1/2''-40'')

Maximum nominal pressure

4.0MPa(DN10-80), 1.6MPa(DN100-150), 1.0MPa(DN200-1000)

Max. media temperature

70℃(Rubber liner)；130℃ PTFE （Remote version）

Ambient temperature

 -20℃ to 60℃

Sensor protection

IP67，Remote IP68 optional

Liner

Rubber, PTFE or others on request

Electrodes

SS 316L, other material on request

Measuring tube

Carbon steel or Stainless steel can be optional

Coils resistance

80/100Ω

Other features

Earthing through 3rd; Automatic electrode cleaning

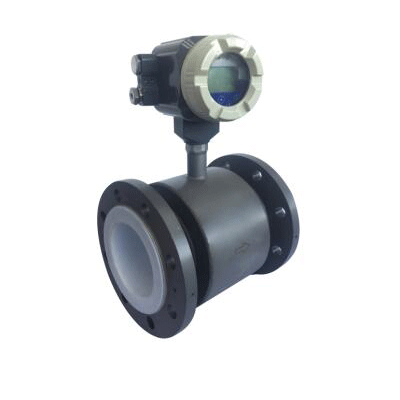

MF1010(1020)Electromagnetic Flowmeter

Pipe size

DNXX

DN50—50mm, DN200—200mm

Liner Material

R

Rubber

P

PTFE

O

Others

Pressure

1

4.0MPa(DN10-65)

2

1.6MPa(DN80-150)

3

1.0MPa(DN200-500)

Pipe Material

C

Carbon steel

S

Stainless steel

Electrode

SS

316L standard

TI

Titanium

HC

HC,HB

TA

Tantalum

PL

Platiniridium

Structure

A

Complete structure(MF1010)

B

Combined structure,5m cable(MF1020)

Output

N

None

C

4-20mA

V

0-10V voltage

P

Pulse

R

RS232

M

RS485 Modbus

H

Hart

G

GPRS

Power Supply

B

Battery（MF1020）

A

85-265VAC（MF1010）

D

24VDC（MF1010）

O

Others

Flanges

1

GB

2

DIN

3

ANSI

4

JIS

5

Others

Water Proof

1

IP67 (Standard)

2

IP68 (Only for combined structure)

MF1010

—

DN80

—

P

—

2

—

C

—

SS

—

A

—

C

—

A

—

1

—

1

(example configuration)
