TF1100-EC:

   u Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.

u Wide liquid temperature range: -35℃~200℃.

u  Data logger function.

u  Thermal energy measurement capability can be optional.

u  For commonly used pipe materials and diameters from 20mm to over 6.0m.

u  Wide bi-directional flow range of 0.01 m/s to 12 m/s.

TF1100-CH:

u14 hours battery (rechargeable), back-lit 4 lines display.

uData logger function.

uCan be used for mobile measurement, flow rate calibration, data comparing, meters running status checking.

uNon-invasive transducers.

uWide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range: -35℃~200℃.

uWorks reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.

uLightweight and easily transportable in box.

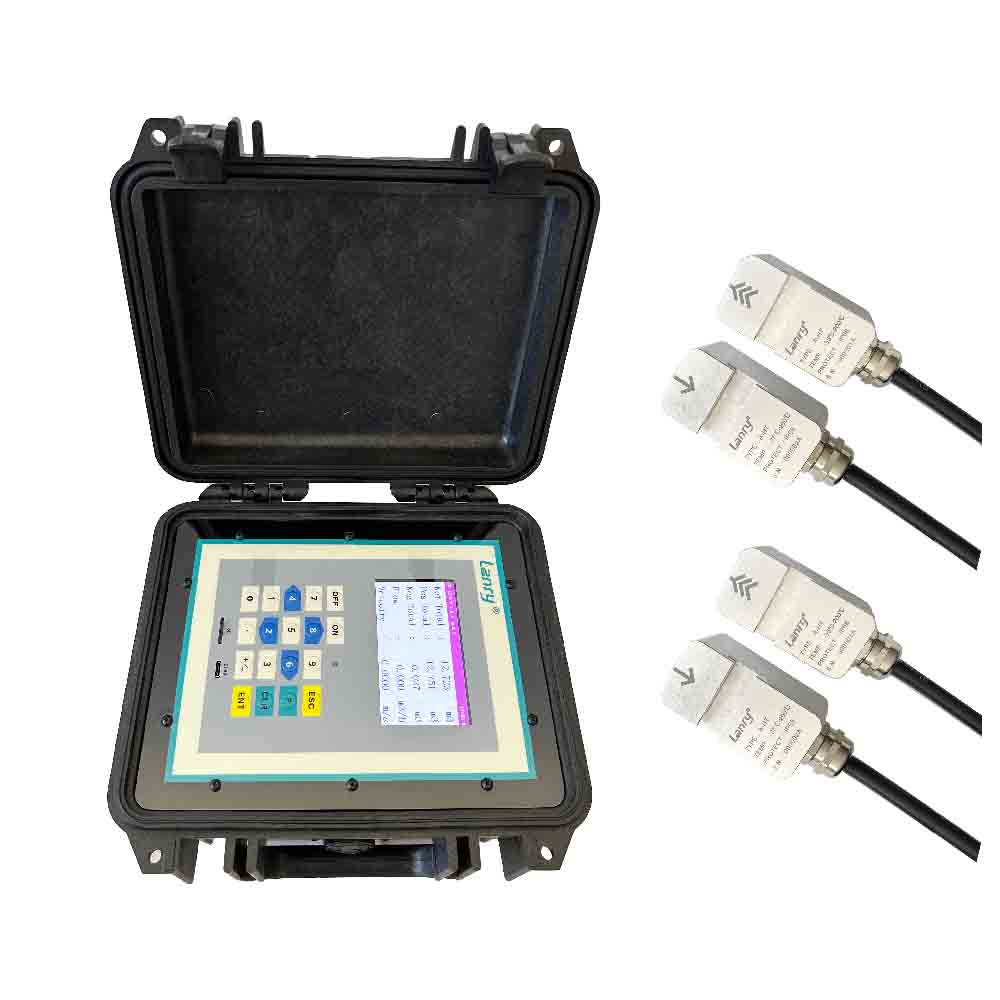

TF1100-EH:

u14 hours battery (rechargeable), back-lit 4 lines display.

uData logger function.

uCan be used for mobile measurement, flow rate calibration, data comparing, meters running status checking.

uNon-invasive transducers.

uWide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range: -35℃~200℃.

uWorks reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.

uLightweight and easily transportable in box.

TF1100-EP：

 u   50-hour battery (rechargeable), 4.3'' color LCD multi-line display all integrated into a rugged, watertight enclosure.

u   Data logger function.

u   The heat measurement function by configuring with paired temperature sensors.

u   Non-invasive transducers.

u   Wide bi-directional flow range of 0.01 m/s to 12 m/s. Wide liquid temperature range:  -35℃~200℃.

u   Works reliably in both clean and somewhat dirty liquids with turbidity<10000ppm.

u   Lightweight and easily transportable in box.

TF1100-EI:

u     Hot-tapped installation, no pipe line flow interrupted.

u     No moving parts, no pressure drop, no maintenance.

u     Spool-piece transducer for best accuracy and better long-term stability.

u     High temp. Insertion transducers are suitable for high temperature of -35℃~150℃.

u     Wide bi-directional Flow range of 0.03 to 36 m/s, and wide range of pipe sizes from DN65 to DN6000.

u    Data logger function.

u     The heat measurement function by configuring with paired temperature sensors

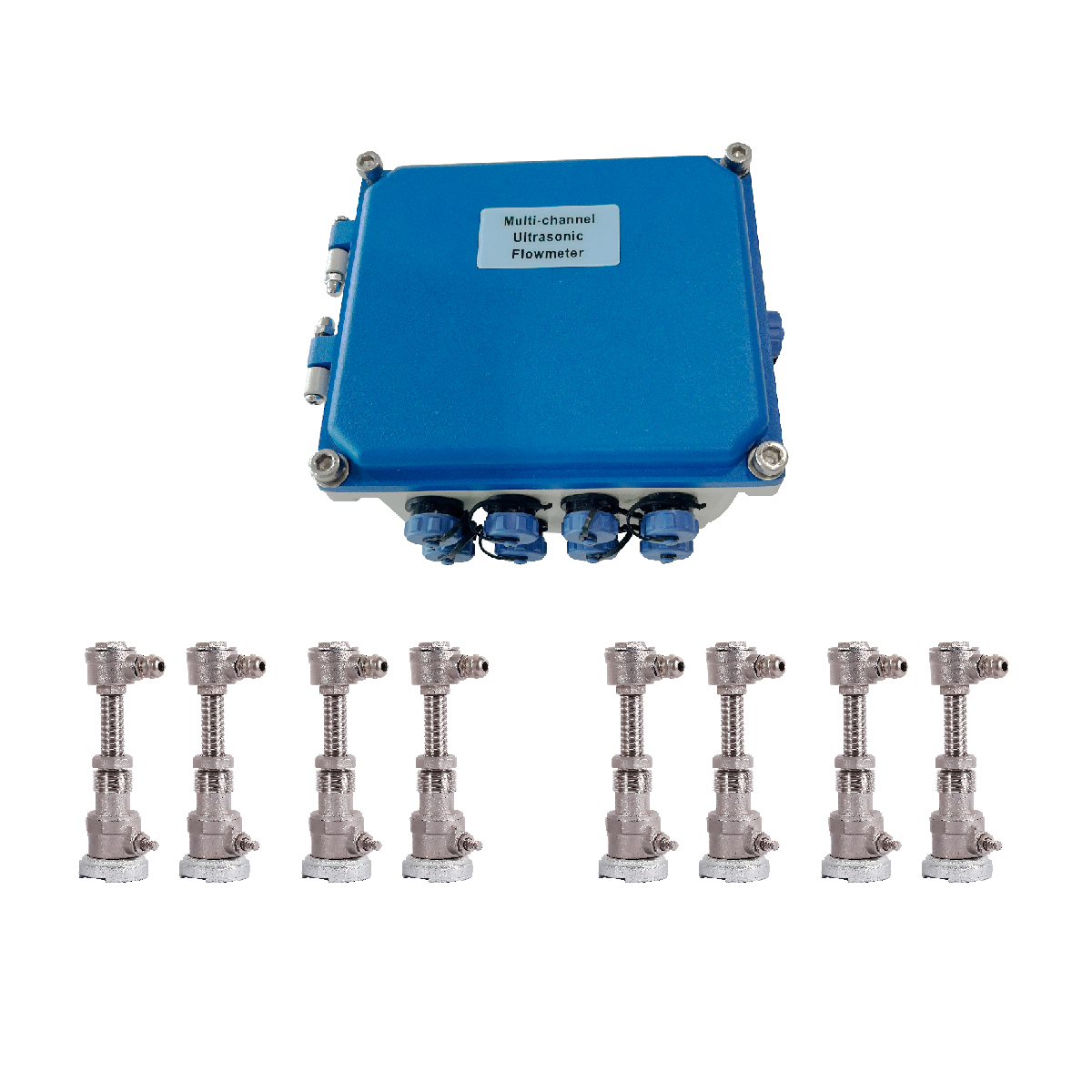

TF1100-MI:

uWorks on the multi-channel transit-time principle. The accuracy is 0.5%.

uWide bi-directional Flow range of 0.01 m/s to 12 m/s. Repeatability is less than 0.15%.

u3.6V 76Ah battery power supply，with lifetime over 10 years (measuring cycle: 500ms).

uLow starting flow, super wide turndown ratio Q3:Q1 as 400:1.

uWith storage function. Can storage both forward flow and back flow

u Hot-tapped installation, no pipe line flow interrupted.

uStandard output is RS485 modbus, Pulse, NB-IoT, 4G, GPRS, GSM can be optional.

uTwo channels and four channels can be optional.

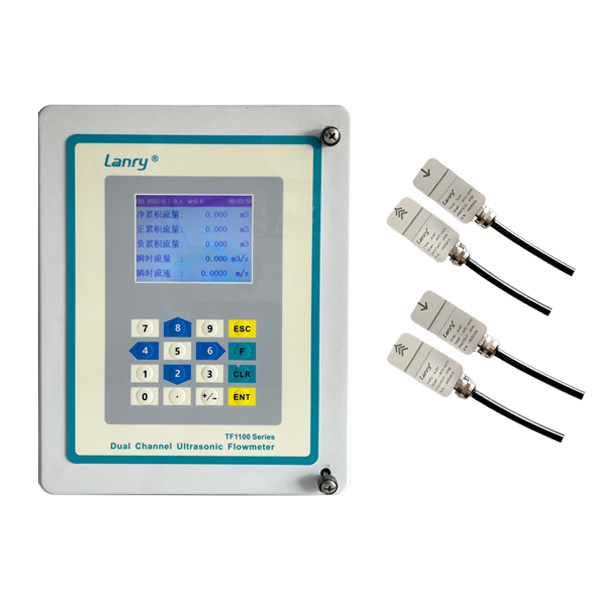

The clamp-on ultrasonic transducers (sensors) are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe. Two pairs of transducers are sufficient to cover the most common pipe diameter ranges. In addition, its optional thermal energy measurement capability makes it possible to carry out a complete analysis of thermal energy usage in any facility.

This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.

TF1100-DI transit-time Insertion dual channels ultrasonic flowmeter provides abundant capabilities for accurate liquid flow measurement from outside of a pipe. It utilizes state-of-the-art technologies on ultrasonic transmission /receiving, digital signal processing and transit-time measurement. The proprietary signal quality tracking and self-adapting technologies allow system to optimally adapt to different pipe materials automatically. Due to hot-tapped mounting of insertion transducers, there is no ultrasonic compound and coupling problem; Even though the transducers are inserted into pipe wall, they do not intrude into the flow, thus, do not generate disturbance or pressure drop to the flow. The insertion (wetted) type has the advantage of long-term stability and better accuracy.
