TF1100-DC Dual-channel clamp on ultrasonic flowmeter

TF1100-DC:

uDual channel non-invasive transducers to ensure high accuracy 0.5% of the flow meter.

uEasy to install, cost effective, and require no pipe cutting or processing interrupt.

uWide liquid temperature range: -35℃~200℃.

uData logger function.

uAluminum or Stainless steel SUS304 sensors for your optional.

uThermal energy measurement capability can be optional.

uFor commonly used pipe materials and diameters from 20mm to 6.0m.

uWide bi-directional flow range of 0.01 m/s to 15 m/s.

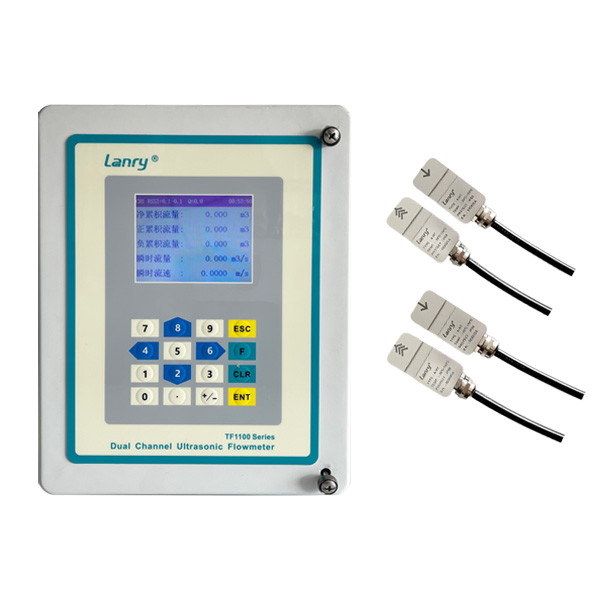

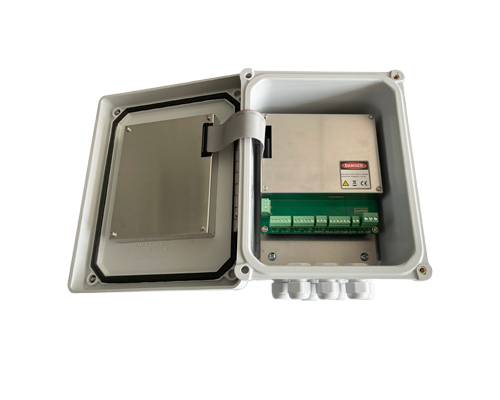

TF1100-DC Dual-channel Wall-mounted Transit Time Ultrasonic Flowmeter works on the transit-time method. The clamp-on ultrasonictransducers (sensors) are mounted on the external surface of the pipe for non-invasive andnon-intru sive flow measurement of liquid and liquefied gasses in fully filled pipe. Two pairs oftransducers are sufficient to cover the most common pipe diameter ranges. In addition, its optional thermal energy measurement capability makes it possible to carry out a complete analysis of thermal energy usage in any facility.

This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.

Features:

uDual channel non-invasive transducers to ensure high accuracy 0.5% of the flow meter.

uEasy to install, cost effective, and require no pipe cutting or processing interrupt.

uWide liquid temperature range: -35℃~200℃.

uData logger function.

uAluminum or Stainless steel SUS304 sensors for your optional.

uThermal energy measurement capability can be optional.

uFor commonly used pipe materials and diameters from 20mm to 6.0m.

uWide bi-directional flow range of 0.01 m/s to 15 m/s.

Specifications: Transmitter

Measurement principle	Ultrasonic transit-time difference correlation principle
Flow velocity range	0.01 to 15 m/s, bi-directional
Resolution	0.1mm/s
Repeatability	0.15% of reading
Accuracy	±0.5% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s
Response time	0.5s
Sensitivity	0.001m/s
Damping of displayed value	0-99s(selectable by user)
Liquid Types Supported	both clean and somewhat dirty liquids with turbidity <10000 ppm
Power Supply	AC: 85-265V DC: 24V/500mA
Enclosure type	Wall-mounted
Degree of protection	IP66 according to EN60529
Operating temperature	-10℃ to +60℃
Housing material	Fiberglass
Display	4.3’’ color LCD 5 lines display, 16 keys
Units	User Configured (English and Metric)
Rate	Rate and Velocity Display
Totalized	gallons, ft³, barrels, lbs, liters, m³,kg
Thermal energy	unit GJ，KWh can be optional

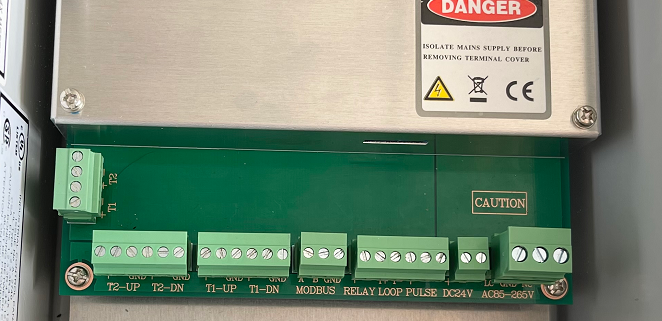

Communication	4~20mA(accuracy 0.1%),OCT, Relay, RS485 (Modbus),data logger
Security	Keypad lockout, system lockout
Size	244196114mm
Weight	2.4kg

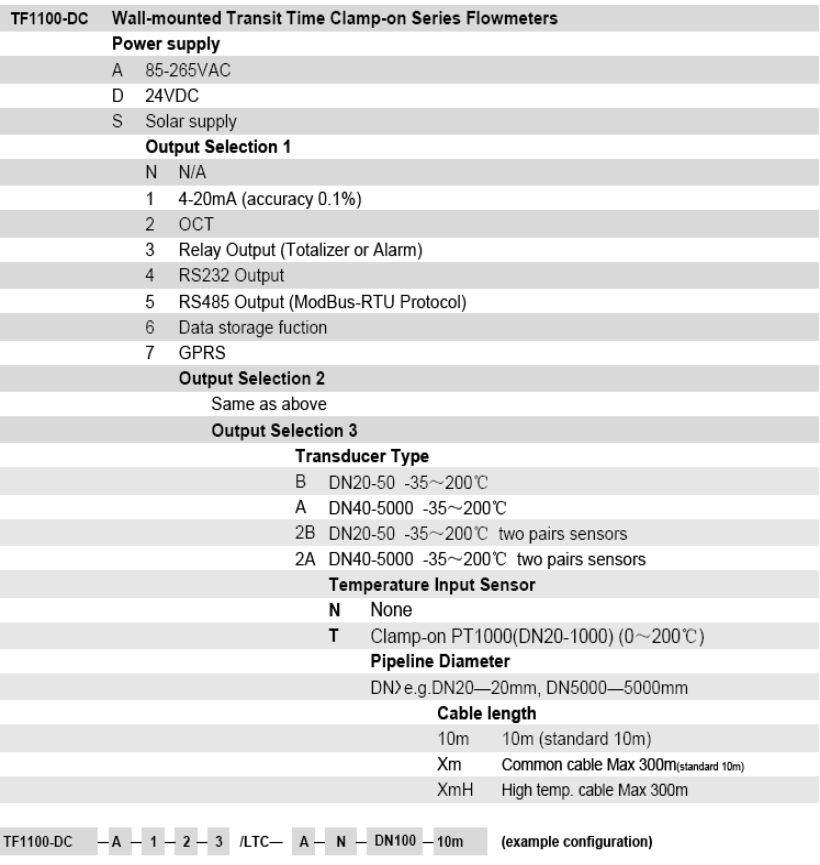

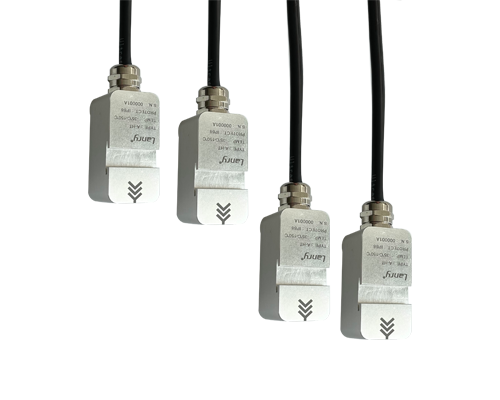

Specifications: Transducer

Degree of protection	Standard IP65; IP67, IP68 can be optional
Suited Liquid Temperature	-35℃~200℃
Pipe diameter range	20-50mm for type B, 40-4000mm for type A
Transducer Size	Type A 46(h)31(w)28(d)mm
Transducer Size	Type B 40(h)24(w)22(d)mm
Material of transducer	Aluminum or Stainless steel SUS304
Cable Length	Std:10m
Temperature Sensor	Pt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1%
