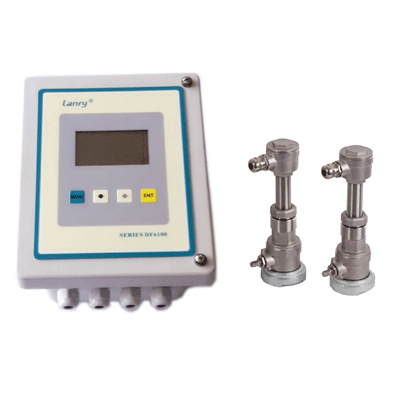

DF6100-EI Doppler Insertion Ultrasonic Flow Meter

DF6100-EI：

u It is suitable for pipe sizes ranging from 65 to 4000mm

u For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained

u Excellent low flow rate measurement ability, low to 0.05m/s

u A wide range of flow measurement, high flow rate can reach 12m/s

u High-temperature transducer is suitable to liquids of -35℃ ~ 150℃

u Do not need to shut down the pipe flow when installing the transducers

u User-friendly configuration

u 4-20mA, Relay Totalizer and Relay Alarm outputs

u Accuracy: 2.0% Calibrated span

DF6100-EI Series Doppler Insertion Ultrasonic Flow Meter can measure metal or plastic pipes with a certain amount of air bubbles or suspended solids.

Advanced technique allows this instrument to operate with high reliability and low maintenance. Insertion transducers permit the instrument to be installed without interrupting system pressure or flow.

Features：

It is suitable for pipe sizes ranging from 65 to 4000mm
For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
Excellent low flow rate measurement ability, low to 0.05m/s
A wide range of flow measurement, high flow rate can reach 12m/s
High-temperature transducer is suitable to liquids of -35℃ ~ 150℃
Do not need to shut down the pipe flow when installing the transducers
User-friendly configuration
4-20mA, Relay Totalizer and Relay Alarm outputs
Accuracy: 2.0% Calibrated span

Technical Parameters：

Specifications: Transmitter

Measurement principle	Doppler ultrasonic
Resolution	0.5mm/s
Repeatability	0.2% of reading
Accuracy	0.5% -- 2.0% F.S.
Response time	2-60s for optional
Flow Velocity Range	0.05- 12 m/s
Liquid Types Supported	Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron.
Power Supply	AC: 85-265V DC: 24V/500mA
Enclosure type	Wall-mounted
Degree of protection	IP66 according to EN60529
Operating temperature	-20℃ to +60℃
Housing material	Fiberglass
Measurement Channels	1
Display	2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable)
Units	User Configured (English and Metric)
Rate	Rate and Velocity Display
Totalized	gallons, ft³, barrels, lbs, liters, m³,kg
Communication	4-20mA,relays for Totalizer and alarm output
keypad	4pcs buttons

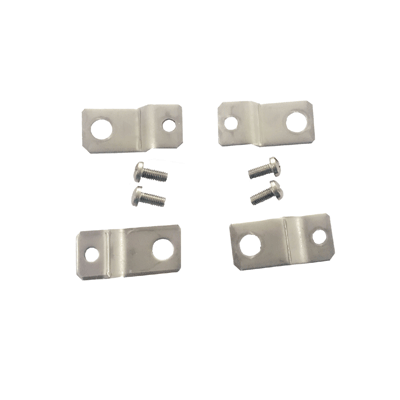

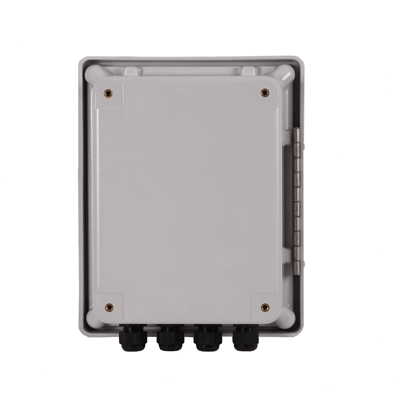

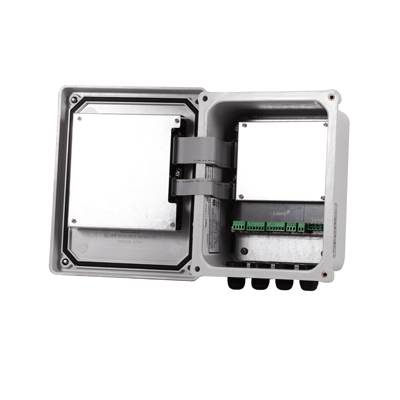

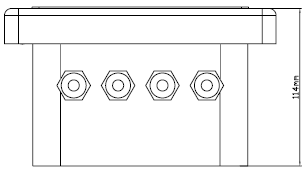

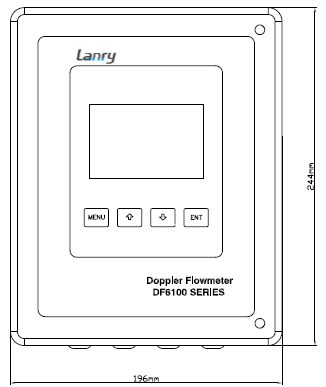

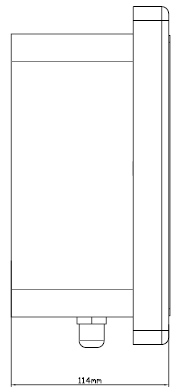

Size	244(h)196(w)144(d)mm
Weight	2.4kg

Specifications: Transducer

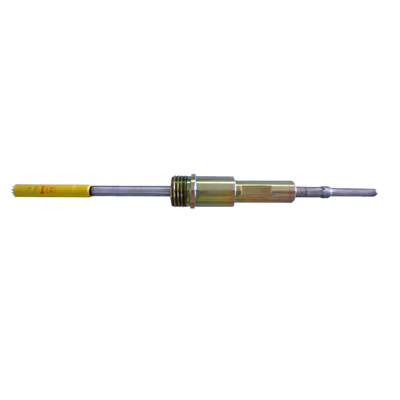

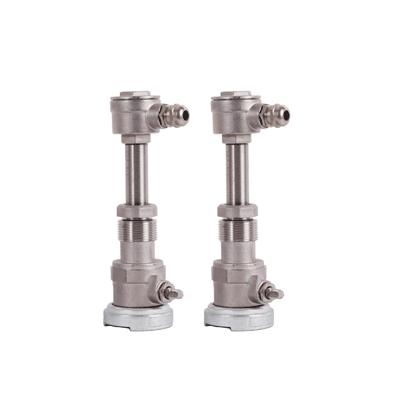

Transducers Type	Insertion
Degree of protection	IP67 or IP68 according to EN60529
Suited Liquid Temperature	Std. Temp.: -35℃~85℃
Suited Liquid Temperature	High Temp.: -35℃~150℃
Pipe diameter range	65-4000 mm

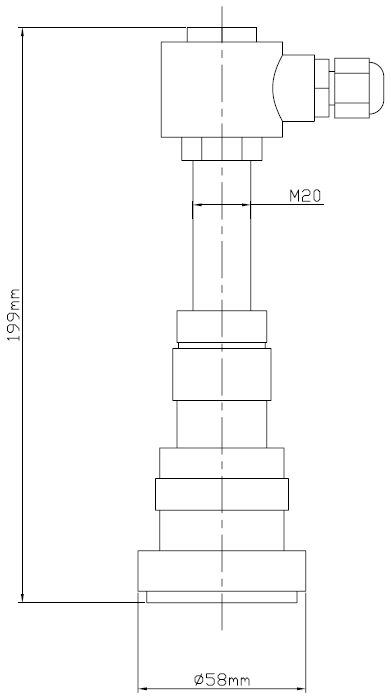

Transducer Size	5858295mm
Material of transducer heads	Stainless steel
Cable Length	Std: 10m
