DOF6000-W Wall-Mounted Partially Filled Pipe & Open Channel Flowmeter

DOF6000-W:

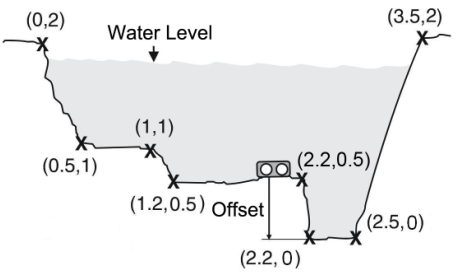

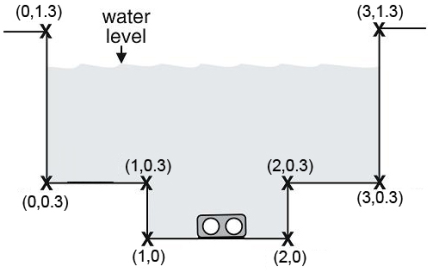

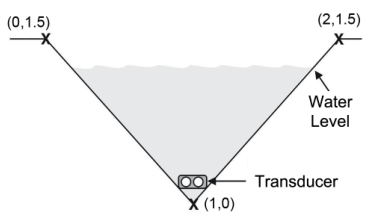

u 20 coordinate points to describe the river’s shape of cross section.

uOne instrument can measure the velocity, depth and conductivity at same time.

u Velocity Range : 0.02mm/s to 10m/s bi-directional, accuracy is 1%.

u Depth Range: 0 to 10m

u Measure velocity in both forward flow and back flow.

uDepth is measured by both the pressure sensor and ultrasonic level sensor principles.

u With coordinate correction and pressure compensation function.

uIP68 Epoxy-sealed body design, long time under water.

u RS485/MODBUS output, can contact computer directly.

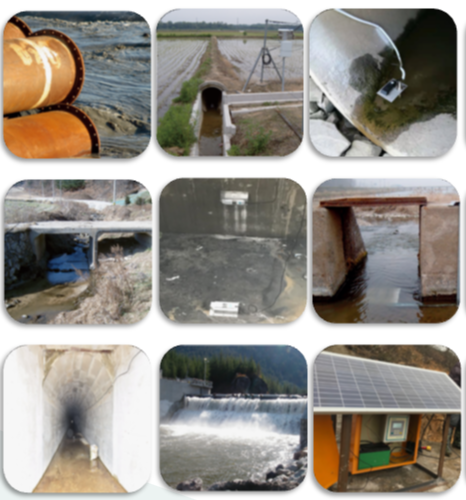

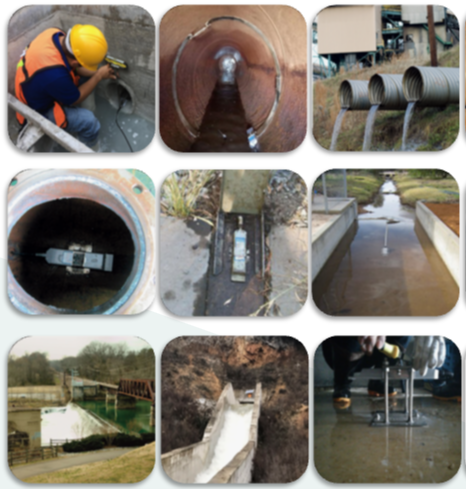

The DOF6000 series flowmeter consists of flow calculator and the ultraflow 6537, it is used to measure water velocity, depth, pressure temperature and conductivity of water flowing in rivers, streams, open channels and pipes.

1. 20 coordinate points to describe the river’s shape of cross section.

2. One instrument can measure the velocity, depth and conductivity at same time.

3. Velocity Range : 0.02mm/s to 10m/s bi-directional, accuracy is 1%.

4. Depth Range: 0 to 10m

5. Measure velocity in both forward flow and back flow.

6. Depth is measured by both the pressure sensor and ultrasonic level sensor principles.

7. With coordinate correction and pressure compensation function.

8. IP68 Epoxy-sealed body design, long time under water.

9. RS485/MODBUS output, can contact computer directly.

Specification:

Power supply:	Calculator：220VAC&24VDC；Sensor:12VDC
IP class:	Calculator: IP66，Sensor: IP68
Operating temperature:	0℃ ~+60℃ water temperature
Calculator show:	4.5” color LCD
Calculator output:	4-20mA， RS485( Modbus-RTU)，Data logger，GPRS
Sensor size:	135mm x 50mm x 20mm (L x W x H)

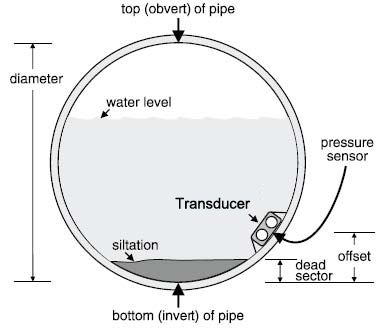

Application:	Partially Filled Pipe:200-10000mm; Open Channel: 200-10000mm
Flow calculation:	Velocity；Totalizer
Pipe, Channel type	Partially filled pipe, Open Channel and River, Stream
Sensor material:	Epoxy-sealed body, Marine Grade 316 Stainless Steel Mounting Bracket
Sensor weight:	1kg with 15m of cable, it can extend o 100m
Velocity range:	20mm/s-0.8m/s; 20mm/s-1.6m/s; 20mm/s-3.2m/s (default); 20mm/s- 6.4m/s; 20mm/s-13.2m/s Bidirectional velocity capability
Velocity accuracy:	±1% typical
Velocity resolution:	1mm/s
Depth range: Ultrasonic Sensor:	20mm up to 5m above top surface of the instrument 40mm up to 5m from base of the instrument
Temperature resolution:	0.1°C
Cable:	The standard cable is 15m, the maximum option is 100m.
Power usage:	10V to 24VDC, 50µA standby, 100mA/s
SDI-12:	SDI-12V 1.3recorder (1200 baud smart instrument channel)
