Features

u  Internal 3.6V lithium battery power supplying;

u  Calculator case's unique design, users can meet multi-angle data is read;

u  Support supply water and backwater pipeline position installation to satisfy users different requirements.（Default installation: supply water position.

u  Support level and vertical installation to satisfy users’ different requirements.

u  Support optical interface, RS485 interface and M-Bus interface etc. multi-communication mode, easy for centralized data management by user.

NOWA-testing in the parallel mode is applicable.

Features

u  Calculator can be hung at the body or installed separately. Distance apart could be up to 10 meter.

u  Internal 3.6V high capacity lithium battery，external AC220V or DC24V optional

u  Unique design for fluid structure to improve measuring accuracy and stability and reduce the requirement for straight piping during installation to up 5 and down 0.

u  IP68 grade

u  Can be mounted in flow pipe or in return pipe, and can be mounted in horizontal or vertical installation for different customer requirements.

u  Complies CJ/188, GB/26831,MODBUS RTU and EN13757 communication protocol

u  Support optical,RS485, wire and wireless M-Bus, short message, GPRS, pulse output interfaces, convenient for user to manage data in different manners.

u  4～20 mA output optional.

u  Complies with AGFW NOWA protocol

LMB/LMC/LMD:

uSeparate probes are easy to install, host installation location is flexible and easy to operate.

uUltrasonic probe using PVC or PTFE materials for a variety of corrosive conditions, sanitary type is optional.

uWith the patents of Smart echo processing technology to ensure the accuracy and stability.

uPatented ultrasound probe structure with short blind range, high sensitivity, build-in with full range of automatic temperature compensation.

uMaximum length allowed for the probe cable 1000m, super anti-electromagnetic interference.

u6 relays at most, MODBUS, HART, PROFIBUS-DP protocol, and other functions.

uElectric heating probe for cold regions.

uCan be flexibly customized according to customer demand.

LMU:

uEasy to install, operate and maintain.

uUltrasonic probe using PVC or PTFE materials for a variety of corrosive conditions, sanitary type is optional.

uWith the patents of Smart echo processing technology to ensure the accuracy and stability.

uPatented ultrasound probe  structure, ultra short blind range, high sensitivity, built-in full range of automatic temperature compensation.

uContinuous level measurement, the maximum range of up to 40m.

uHART, MODBUS protocol communication is optional.

uThe level meters with HART® 7 Communication Protocol which have been passed the tests by the HART certification laboratory.

uCan be flexibly customized according to customer demand.

MT200:

uProbe-Zero function, Sound-Velocity-Calibration function

uTwo-Point Calibration function.

uTwo work modes: Single point mode and Scan mode.

uCoupling status indicator showing the coupling status.

uBattery information indicates the rest capacity of the battery.

uAuto sleep and auto power off function to conserve battery life.

uOptional software to process the memory data on the PC.

uOptional thermal mini-printer to print the measured data via RS232 port.

uCapable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

uFour transducer models are available for special application, including for coarse grain material and high temperature applications.

TF1100-MI:

uWorks on the multi-channel transit-time principle. The accuracy is 0.5%.

uWide bi-directional Flow range of 0.01 m/s to 12 m/s. Repeatability is less than 0.15%.

u3.6V 76Ah battery power supply，with lifetime over 10 years (measuring cycle: 500ms).

uLow starting flow, super wide turndown ratio Q3:Q1 as 400:1.

uWith storage function. Can storage both forward flow and back flow

u Hot-tapped installation, no pipe line flow interrupted.

uStandard output is RS485 modbus, Pulse, NB-IoT, 4G, GPRS, GSM can be optional.

uTwo channels and four channels can be optional.

26G Pulse Radar Level Meter: LRD815-LRD819

Intelligent Radar Level Meter: LRD801-LRD819

Guided Wave Radar Level Meter: LRD701-LRD704

Water Conservancy Radar Level Meter: LRD813

     TG-MT150/160

u  Large LCD for easy reading

u  Suitable for all metallic and non-metallic materials

u  Easy to operate

u  Wide measuring range from 0.75mm to 300mm (Steel)

u  Sound Speed Range up to 9999m/s

u  Display resolution 0.1 mm

u  Handheld and robust

The clamp-on ultrasonic transducers (sensors) are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe. Two pairs of transducers are sufficient to cover the most common pipe diameter ranges. In addition, its optional thermal energy measurement capability makes it possible to carry out a complete analysis of thermal energy usage in any facility.

This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.

TF1100-DI transit-time Insertion dual channels ultrasonic flowmeter provides abundant capabilities for accurate liquid flow measurement from outside of a pipe. It utilizes state-of-the-art technologies on ultrasonic transmission /receiving, digital signal processing and transit-time measurement. The proprietary signal quality tracking and self-adapting technologies allow system to optimally adapt to different pipe materials automatically. Due to hot-tapped mounting of insertion transducers, there is no ultrasonic compound and coupling problem; Even though the transducers are inserted into pipe wall, they do not intrude into the flow, thus, do not generate disturbance or pressure drop to the flow. The insertion (wetted) type has the advantage of long-term stability and better accuracy.

◆ Low blind area 3cm, measuring range as 3m.

◆ Excellent anti-interference capability;

◆ Set parameters and read the data via RS485 modbus.

◆ Small beam Angle 6º(3db), suitable for narrow space applications.

◆ With the smart signal processing technology to ensure the accuracy and stability

◆ Protect class IP68 and strong corrosion resistance to meet the abominable environment.

◆ With great over-voltage and over-current protection and excellent anti-interference capability.

◆ Low blind area 3cm, measuring range as 3m.

◆ Excellent anti-interference capability;

◆ Set parameters and read the data via Bluetooth Mobile Phone.

◆ Small beam Angle 6º(3db), suitable for narrow space applications.

◆ With the smart signal processing technology to ensure the accuracy and stability

◆ Protect class IP68 and strong corrosion resistance to meet the abominable environment.

◆ With great over-voltage and over-current protection and excellent anti-interference capability.

uHigh detection accuracy, the flow meter measurement changes with 1mm, the accuracy of change in level is 1 mm.

uSuitable for a variety of weirs and flumes, Parshall flumes (ISO), V-Notch weirs, rectangular weirs (With or Without End Contractions) and custom Formula type weir.

u5-inch anti-interference ultra-high-definition color touch screen, stable work, not afraid of oily water stains; Modern display effect.

uSupport displaying trend curves and historical records (Can be exported through mirco SD card).

uThe setting interface is password protected.

uThe probe with leak-proof structure and IP68 protect grade.

uProvided 4-20mA output and RS485 serial communication (MODBUS-RTU) output.

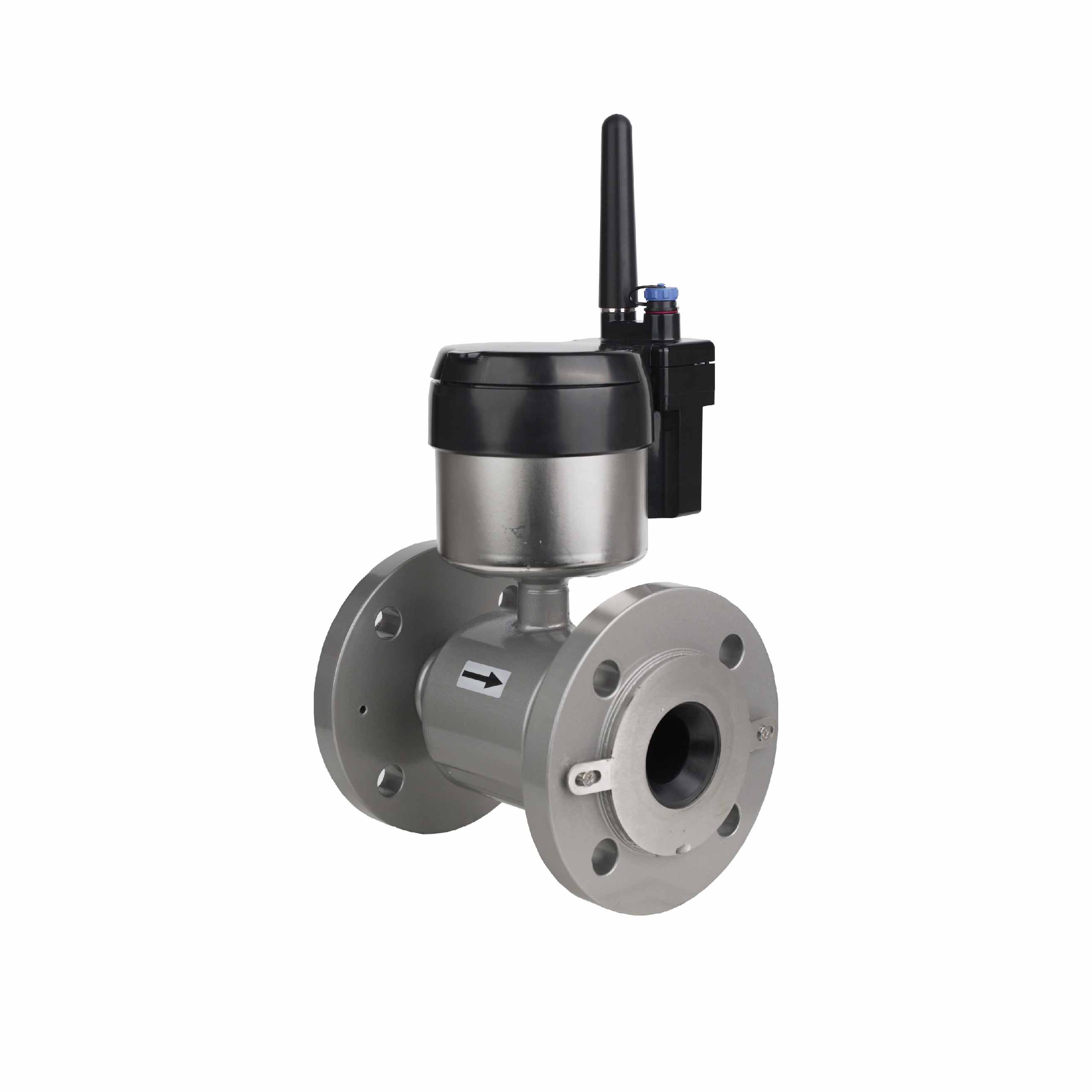

Features:

u Integrated meter and valve, fully enclosed structure, anti-vandalism

u Measuring low starting flow

u No moving parts, accuracy will not change after long term working

u With functions of self-diagnosis, flow sensor alarm, temperature sensor alarm, over range alarm, battery under voltage alarm and valve error alarm

u Low consumption design, battery can continuously work for 6 years

u With optic electric interface, hand-held infrared meter reading tool can read directly

u Support swiping card to recharge and manage system remote valve control.

u Bi-directional measuring forward and reverse flow

u According to sanitary standard for drinking water
