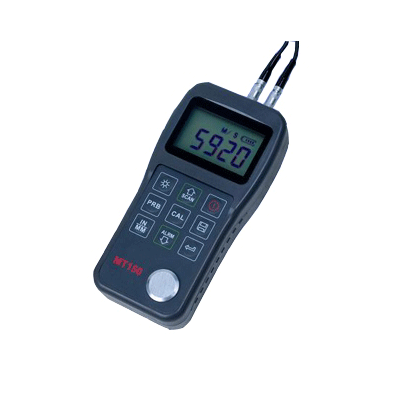

TG-MT150/160 Ultrasonic Thickness Gauge

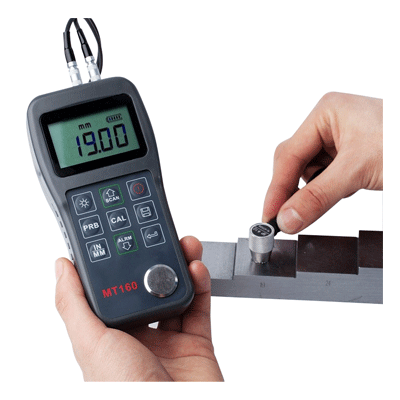

TG-MT160 Ultrasonic Thickness gauge is used for measuring the thickness of materials where access to only one side of the test piece is available for many different materials including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene PVC, gray cast iron, nodular cast iron and other ultrasonic wave well-conductive materials. Dual probe extended your measure range to every possible need in your area. Transducer models are available for special application, including for coarse grain material and high temperature applications. Two-Point Calibration function； Two work modes: Single point mode and Scan mode； Coupling status indicator showing the coupling status；Auto sleep and auto power off function to conserve battery life.
Features:
Large LCD for easy reading
Suitable for all metallic and non-metallic materials
Easy to operate
Wide measuring range from
Sound Speed Range up to
Display resolution
Handheld and robust
Function :
1. Applicable to measure the thickness of any hard materials, e.g. steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene PVC, gray cast iron, nodular cast iron
2. Automatic Zero Adjustment
3. Data Store Function for up to 20 t files (up to 99 values for each file) of stored value
4. Auto Power Shut Off
5. Linear compensation circuit for high accuracy (1%H+0.1)
6. Speed of sound testing (m/s) with 12 storage memory.
7. 2.5 MHz for rough surface measurement
Technical Parameters：
|
|
TG-MT150 |
TG-MT160 |
|
Display |
4.5 digits LCD with EL backlight. |
128×64 dot matrix LCD with EL backlight. |
|
Measuring Range |
0.75～300mm (in Steel) |
|
|
Sound Velocity Range |
1000~9999 m/s |
|
|
Resolution |
0.1mm |
0.1/0.01mm（selectable） |
|
Accuracy |
±（0.5%Thickness+0.04）mm, depends on materials and conditions |
|
|
Units |
Metric/Imperial unit selectable |
Metric/English unit selectable. |
|
Working Temperature Range |
0-45℃ & 0-300℃(A) optional |
|
|
Reading type |
Four measurements readings per second for single point measurement, and ten per second for Scan Mode |
|
|
Memory capacity |
Memory for up to 20 files (up to 99 values for each file) of stored value |
|
|
Communication |
N/M |
RS232 serial port. |
|
Setting & Alarm |
N/M |
Upper and lower limit can be pre-set. It will alarm automatically when the result value exceeding the limit |
|
Power Source |
Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off) |
|
|
Outline dimensions |
150×74×32 mm |
133 X 77 mm. |
|
Weight |
245g |
345g |
Configuration
|
|
No. |
Item |
Quantity |
Remarks |
|
Standard Configuration |
1 |
Main body |
1 |
|
|
2 |
Transducer |
1 |
Model: N05/90° |
|
|
3 |
Couplant |
1 |
|
|
|
4 |
Instrument Case |
1 |
|
|
|
5 |
Operating Manual |
1 |
|
|
|
6 |
Alkaline battery |
2 |
AA size |
|
|
Optional Configuration |
7 |
Transducer: N02 |
|
|
|
8 |
Transducer: N07 |
|
||
|
9 |
Transducer: HT5 |
|
Appendix A: Transducer Selection
|
Model |
Frequency |
Diam |
Measuring Range |
Lower limit |
Description |
|
MHZ |
mm |
||||
|
N02 |
2.5 |
14 |
3.0mm～300.0mm |
20 |
for thick, highly attenuating, or highly scattering materials |
|
N05 |
5 |
10 |
1.2mm～230.0mm |
Φ20mm×3.0mm |
Normal Measurement |
|
N05 |
5 |
10 |
1.2mm～230.0mm |
Φ20mm×3.0mm |
Normal Measurement |
|
/90° |
|||||
|
N07 |
7 |
6 |
0.75mm～80.0mm |
Φ15mm×2.0mm |
For thin pipe wall or small curvature pipe wall measurement |
|
（In Steel） |
|||||
|
HT5 |
5 |
12 |
3～200mm |
30 |
For high temperature (lower than 300℃) measurement. |
Appendix B: Sound Velocities
|
Material |
Sound Velocity |
|
|
In/us |
m/s |
|
|
Aluminum |
0.25 |
6340-6400 |
|
Steel, common |
0.233 |
5920 |
|
Steel, stainless |
0.226 |
5740 |
|
Brass |
0.173 |
4399 |
|
Copper |
0.186 |
4720 |
|
Iron |
0.233 |
5930 |
|
Cast Iron |
0.173-0.229 |
4400－5820 |
|
Lead |
0.094 |
2400 |
|
Nylon |
0.105 |
2680 |
|
Silver |
0.142 |
3607 |
|
Gold |
0.128 |
3251 |
|
Zinc |
0.164 |
4170 |
|
Titanium |
0.236 |
5990 |
|
Tin |
0.117 |
2960 |
|
Epoxy resin |
0.1 |
2540 |
|
Ice |
0.157 |
3988 |
|
Nickel |
0.222 |
5639 |
|
Plexiglass |
0.106 |
2692 |
|
Polystyrene |
0.092 |
2337 |
|
Porcelain |
0.23 |
5842 |
|
PVC |
0.094 |
2388 |
|
Quartz glass |
0.222 |
5639 |
|
Rubber, vulcanized |
0.091 |
2311 |
|
Teflon |
0.056 |
1422 |
|
Water |
0.058 |
1473 |
Application
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. Widely used in industries of petroleum, ship building, and machine manufacturing.
