TECHNICAL PARAMETERS

Technical Index

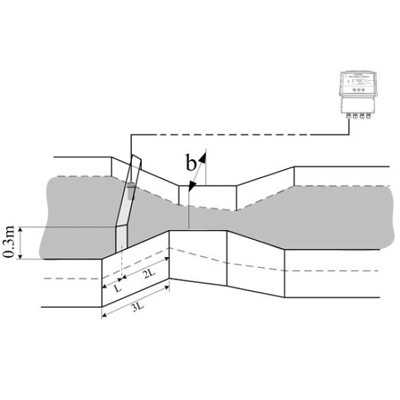

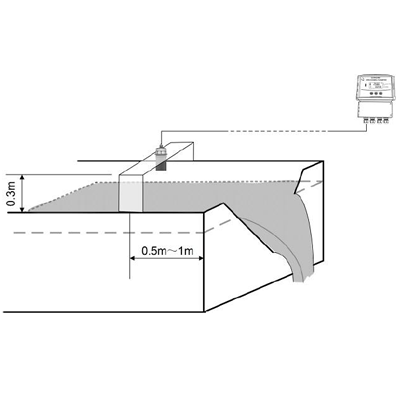

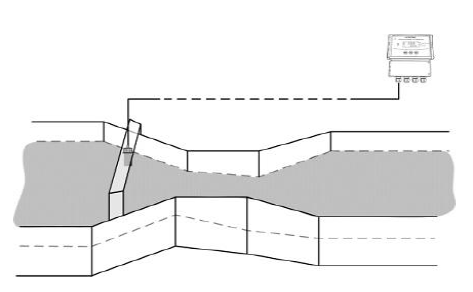

Weir&Flume Match：     Chinese Standard：   Parshall Flume,Triangular Weir ,

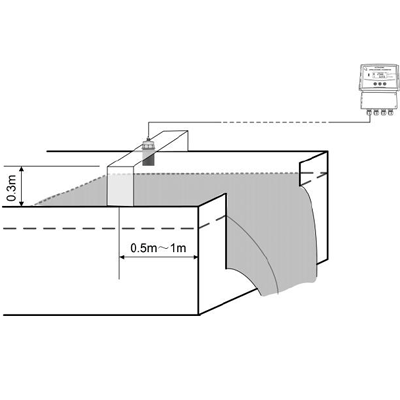

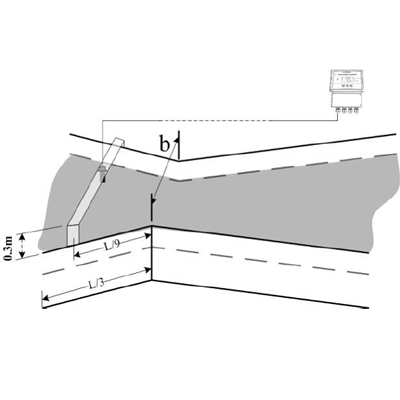

                                                                              Rectangular Weir,Non-throat Flume

                                          ISO    Standard：     Parshall Flume

                                          USBR    Standard：   Long-throat Flume(Rectangular lume,

                                                                                     Trapezoid Flume)

Probe：                             4m(otherwise other range and anti-corrosion requirements,

                                             indicate when you order it)

Accuracy：                      0.2% Full span (In air)

Display Resolution：     1mm

Mode of Indication：      14 Digit LCD in 2 rows

Output Current：            DC4~20mA/RS485/Hart Serial communication RS485(modbus standard protocol)

Output Load：                0~500Ω

Output Resolution：       0.03% Full span

Relays：                           2、4、5、6(5A 250VAC/30VDC)

Baud rate：                     19200/9600/4800

Parameter set up：         3 induction buttons

Temperature Range：    -40 ºC ~75 ºC  (LCD：-20 ºC ~+70ºC)

Temperature compensation：    The whole range   is automatic

Pressure Range：          ±0.1MP (press definitely)

Power Supply：               DC24V（±5%）  0.2A

                                                      AC220V（±20%）  0.1A

Cable：                             Ø6-12mm

Single Wire Diameter：  Ø0.5-1.78mm

Cable Fix：                       PG13.5/M20

Measure Cycle：             1.5second

Crust Material：               ABS

Sensor Material：            ABS/PVC/PTFE

Protect Grade：                IP67
