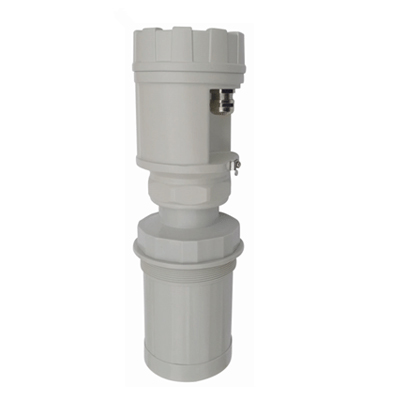

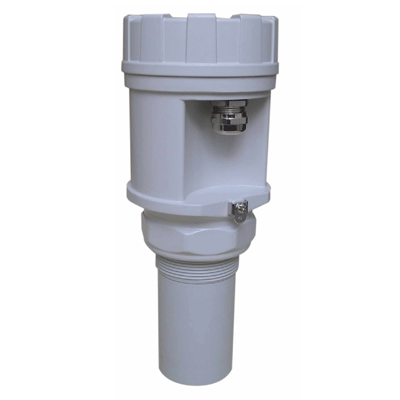

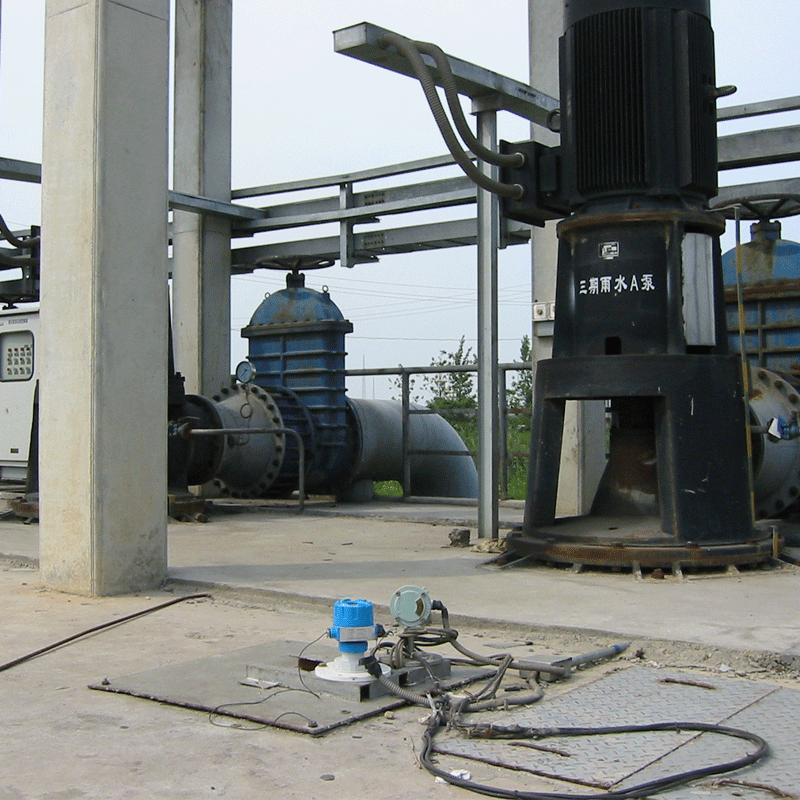

Compact version ultrasonic level meter is that the electronic unit (set parameters, display, the signal output) and ultrasonic probe combine into the overall form, installed on the top of the container, stable operation safety.Selected various models according to the needs of users, the signal output in a variety of forms, application scope is extremely broad, excellent anti-corrosion performance. Especially, explosion-proof series can be used for explosion-proof environment strictly.
Structure:
The series is consists of LMUT 2-Wire Series, LMUN 3-Wire Series, LMUU 4-Wire Series, LMUR with RS485 Series and LUMI explosion-proof Series.
Measuring principle: Time-of-flight method
The sensor of the meter pulses in the direction of the product surface. There, they are reflected back and received by the sensor. The meter measures the time t between pulse transmission and reception. The meter uses the time t (and the velocity of sound c) to calculate the distance D between the sensor membrane and the product surface: D = c •t/2 . As the device knows the empty distance H from a user entry, it can calculate the level as follows: L = H – D .
 |
H: installation height
D:distance value
L:level value
B:blacking distance
F: full scale
|
An integrated temperature sensor compensates for changes in the velocity of sound caused by temperature changes. Calibration Enter the empty distance H and the span F to calibrate the device.
Blanking distance : Span F may not extend into the blanking distance B. Level echo from the blanking distance cannot be evaluated due to the transient characteristics of the sensor.
2 wires series ultrasonic level meter
2-wire series is the most common form of ultrasonic level meter, instrument's power supply(DC24V) and signal output (DC4-20 mA) share the same circuit, current under 4mA is for power supply, and above 4 mA is a signal output.
With the leading technology, we provided the level meters with HART® 7 Communication Protocol which have been passed the tests by the HART certification laboratory.
2-wire system of ultrasonic level meter's maximum span is 30 meters, having the characteristics of small blind area, large range of advanced technology.

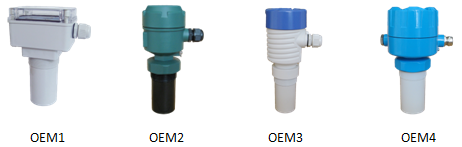

We provide serial crusts for customers choice.
■ Technical specifications
|
l Measuring range
|
(Liquid) LMUT4： 4.00m (Dead Zone:0.20m)
LMUT6： 6.00m (Dead Zone:0.25m)
LMUT8： 8.00m (Dead Zone:0.30m)
LMUT12： 12.00m (Dead Zone:0.50m)
LMUT20： 20.00m (Dead Zone:0.80m)
LMUT30： 30.00m (Dead Zone:1.20m)
Effective rang of solid material level is 50% of liquid's
|
|
l Accuracy
l Output Current：
l Output Mode：
l Output Load：
l Output Resolution：
l Mode of Indication：
l Display Resolution：
l Power Supply：
l Temperature compensation：
l Temperature Range：
l Pressure Range：
l Beam Angle：
l Measure Cycle：
l Parameter set up：
l Cable Fix：
l Cable：
l Crust Material：
l Sensor Material：
l Protect Grade：
l Mode Installation：
|
0.2% Full span (In air)
DC4~20mA (HART optional)
DC4~20mA（Proportional or inversely proportional）
0~500Ω
0.03% Full span
4 Digit LCD
LMUT4、LMUT6、LMUT8：1mm
LMUT12、LMUT20、LMUT30：1cm
DC20V~32V ≥30mA
The whole range is automatic
-40 ºC ~ +75 ºC (LCD：-20 ºC ~+70ºC)
±0.1MP (press definitely)
8º(3db)
1.5second ( tunable )
3 induction buttons
PG13.5/M20/ ½NPT
Ø 6-12mm
ABS/AL
ABS/PVC/PTFE
IP67
Whorl/Flange/Frame
|
3 wire series ultrasonic level meter
3-wire series of ultrasonic level meter is actually four wire system, its power supply (DC24v only) and the signal output (DC4-20 mA) loop is separate, each of them use two lines, when they were connected to negative side, they usually use three lines. Its advantage is transmitted power is larger. Ultrasonic level meter's ultrasonic sensor is fully closed structure, the structure of the integrated sensor shell's optional materials have: ABS, PVC, PTFE. PTFE is resistant to strong acid, strong alkali, organic solvent corrosion, fully adapt to all kinds of measured medium, three-wire system of ultrasonic level meter's maximum span is 40 meters, having the characteristics of small blind area, large range of advanced technology.
We provide serial crusts for customer’s choice.
■Technical specifications
|
l Measuring range
|
(Liquid) LMUN4： 4.00m (Dead Zone:0.20m)
LMUN6： 6.00m (Dead Zone:0.25m)
LMUN8： 8.00m (Dead Zone:0.30m)
LMUN12： 12.00m (Dead Zone:0.50m)
LMUN20： 20.00m (Dead Zone:0.80m)
LMUN30： 30.00m (Dead Zone:1.20m)
LMUN40： 40.00m (Dead Zone:1.50m)
Effective rang of solid material level is 50% of liquid's
|
|
l Accuracy
l Output Current：
l Output Mode：
l Output Load：
l Output Resolution：
l Mode of Indication：
l Display Resolution：
l Power Supply：
l Temperature compensation：
l Temperature Range：
l Pressure Range：
l Beam Angle：
l Measure Cycle：
l Parameter set up：
l Cable Fix：
l Cable：
l Crust Material：
l Sensor Material：
l Protect Grade：
l Mode Installation：
|
0.2% Full span (In air)
DC4~20mA
DC4~20mA（Proportional or inversely proportional）
0~500Ω
0.03% Full span
4 Digit LCD
LMUN4、LMUN6、LMUN8：1mm
LMUN12、LMUN20、LMUN30、LMUN40：：1cm
DC20V~32V 60mA/12v ,100mA
The whole range is automatic
-40 ºC ~ +75 ºC (LCD：-20 ºC ~+70ºC)
±0.1MP (press definitely)
8º(3db)
1.5second (tunable)
3 induction buttons
PG13.5/M20/ ½NPT
Ø 6-12mm
ABS/AL
ABS/PVC/PTFE
IP67
Whorl/Flange/Frame
|
4 wire series ultrasonic level meter
4-wire series instrument's power supply (DC24v or AC220v) and the signal output (DC4-20 mA) loop is separate, using four lines, its advantage is the transmitted power is larger, at the same time provides the high and low relays output. Ultrasonic level meter's ultrasonic sensor is fully closed structure, the structure of the integrated sensor shell's optional materials have: ABS, PVC, PTFE. PTFE is resistant to strong acid, strong alkali, organic solvent corrosion, fully adapt to all kinds of measured medium, four wire's maximum range is 40 meters, having the characteristics of small blind area, large range of advanced technology.
We provide serial crusts for customers choice.
■Technical specifications
|
l Measuring range
|
(Liquid) LMUU4： 4.00m (Dead Zone:0.20m)
LMUU6： 6.00m (Dead Zone:0.25m)
LMUU8： 8.00m (Dead Zone:0.30m)
LMUU12： 12.00m (Dead Zone:0.50m)
LMUU20： 20.00m (Dead Zone:0.80m)
LMUU30： 30.00m (Dead Zone:1.20m)
LMUU40： 40.00m (Dead Zone:1.50m)
Effective rang of solid material level is 50% of liquid's
|
|
l Accuracy
l Output Current：
l Output Mode：
l Output Load：
l Output Resolution：
l Switching Output:
l Relay Type:
l Mode of Indication：
l Display Resolution：
l Power Supply：
l Temperature compensation：
l Temperature Range：
l Pressure Range：
l Beam Angle：
l Measure Cycle：
l Parameter set up：
l Cable Fix：
l Cable：
l Crust Material：
l Sensor Material：
l Protect Grade：
l Mode Installation：
|
0.2% Full span (In air)
DC4~20mA (HART optional)
DC4~20mA（Proportional or inversely proportional）
0~500Ω
0.03% Full span
2 (high and low);
5A 250VAC/30VDC
4 Digit LCD
LMUU4、LMUU6、LMUU8：1mm
LMUU12、LMUU20、LMUU30、LMUU40：：1cm
DC20V~32V ,80mA
AC85V~265V ,10mA
The whole range is automatic
-40 ºC ~ +75 ºC (LCD：-20 ºC ~+70ºC)
±0.1MP (press definitely)
8º(3db)
1.5second (tunable)
3 induction buttons
PG13.5/M20/ ½NPT
Ø 6-12mm
ABS/AL
ABS/PVC/PTFE
IP67
Whorl/Flange/Frame
|
LMUR series ultrasonic level meter with RS485
LMUR series is compact version ultrasonic level meter with RS485 serial interface and output, standard MODBUS protocol, and reliable communication with DCS, PLC, PC.
We provide serial crusts for customer’s choice.
■Technical specifications
|
l Measuring range
|
(Liquid) LMUR4： 4.00m (Dead Zone:0.20m)
LMUR6： 6.00m (Dead Zone:0.25m)
LMUR8： 8.00m (Dead Zone:0.30m)
LMUR12： 12.00m (Dead Zone:0.50m)
LMUR20： 20.00m (Dead Zone:0.80m)
LMUR30： 30.00m (Dead Zone:1.20m)
LMUR40： 40.00m (Dead Zone:1.50m)
Effective rang of solid material level is 50% of liquid's
|
|
l Accuracy
l Output Current：
l Output Mode：
l Output Load：
l Output Resolution：
l Serial Communication：
l Communication Protocol：
l Baud Rate：
l Mode of Indication：
l Display Resolution：
l Power Supply：
l Temperature compensation：
l Temperature Range：
l Pressure Range：
l Beam Angle：
l Measure Cycle：
l Parameter set up：
l Cable Fix：
l Cable：
l Crust Material：
l Sensor Material：
l Protect Grade：
l Mode Installation：
|
0.2% Full span (In air)
DC4~20mA
DC4~20mA（Proportional or inversely proportional）
0~500Ω
0.03% Full span
RS485
MODBUS
19200/9600/4800
4 Digit LCD
LMUR4、LMUR6、LMUR8：1mm
LMUR12、LMUR20、LMUR30、LMUR40：：1cm
DC20V~32V 60mA/12v ,100mA
DC12V
The whole range is automatic
-40 ºC ~+75 ºC (LCD：-20 ºC ~+70ºC)
±0.1MP (press definitely)
8º(3db)
1.5second (tunable)
3 induction buttons
PG13.5/M20/ ½NPT
Ø 6-12mm
ABS/AL
ABS/PVC/PTFE
IP67
Whorl/Flange/Frame
|
LUMI series explosion-proof ultrasonic level meter
LUMI series is the highest level of explosion-proof products (ExiaIICT6) of our own certification, integrated design, 2-wire connection, strong acoustic emission, stable and reliable measurement; With a LCD display window, facilitate debugging; Advanced terminal's automatic fastening, to ensure that wiring never loose; Intelligent signal processing technology to ensure that the instrument to adapt to the working conditions; Unique automatic power control technology, to extend the time of application. Corrosion resistant, adapting to bad environment.
■Technical specifications
|
l Measuring range
|
LUMI4： 4.00m (Dead Zone:0.20m)
LUMI8： 8.00m (Dead Zone:0.30m)
LUMI12: 12.00m (Dead Zone:0.40m)
|
|
l Accuracy
l Explosion-proof grade:
l Explosion-proof Certificate No
l Output Current：
l Output Load：
l Mode of Indication：
l Power Supply：
l Temperature compensation：
l Temperature Range：
l Pressure Range：
l Beam Angle：
l Measure Cycle：
l Parameter set up：
l Cable Fix：
l Cable：
l Crust Material：
l Sensor Material：
l Protect Grade：
l Mode Installation：
|
0.2% Full span (In air)
ExiallBT6
CE15.2114X
DC4~20mA (HART optional)
0~600Ω
4 Digit LCD
DC24v (21v~27v),35mA
The whole range is automatic
-40 ºC ~+75 ºC (LCD：-20 ºC ~+70ºC)
±0.1MP (press definitely)
8º(3db)
(1.0~2.0s)
3 induction buttons
PG13.5/M20/ ½NPT
Ø 6-12mm
AL
PTFE&304SS / PVC&AL
IP67
Whorl /Flange/Frame
|
