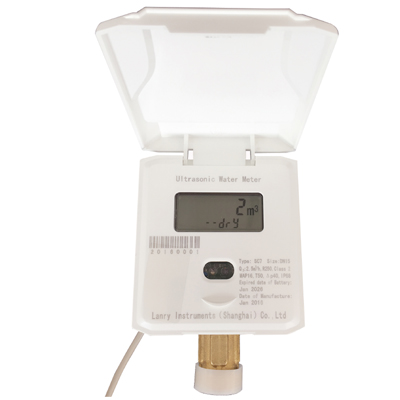

Product Description

Direct reading ultrasonic water meter is used for measuring, storage and display water flow.

Nominal Diameter: DN15~DN40

Application range : Tap-water pipe net system

Features

◆ Low starting flow rate, minimum flow rate 1/3 of traditional water meter.

◆ Water temperature detection, low temperature alarm.

◆ No moving part, no wear, long term stable operation.

◆ Above 10 years shelf life.

◆ Installation at any angel, no influence for measurement accuracy.

◆ Ultrasonic signal quality detection.

◆ Photosensitive button, IP 68 design, longtime under water working.

◆ Support optical, RS485 and wired & wireless M-bus communication interfaces.

◆ Complies to MODBUS RTU and EN 13757 communication protocol.

◆ Compile to drinkable water standard requirement.

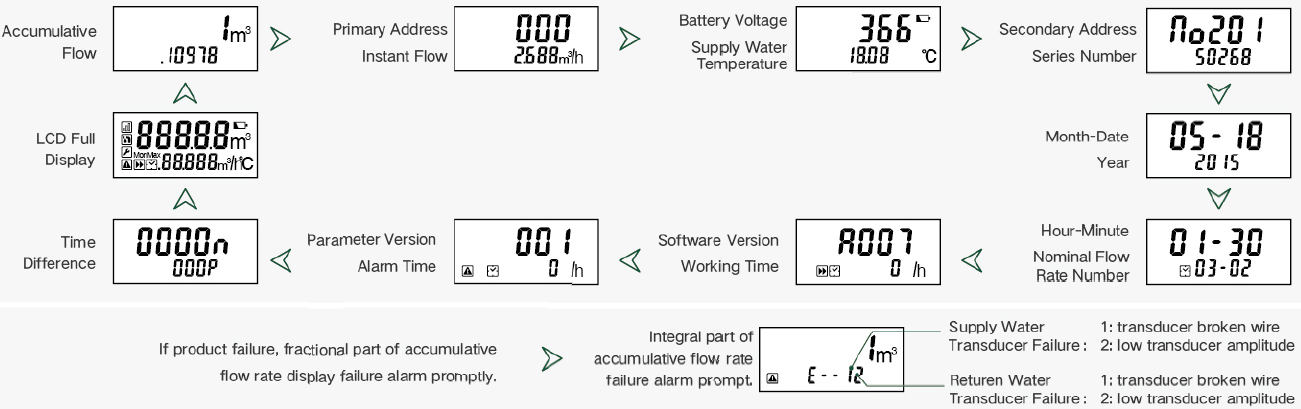

Display Description (Residential)

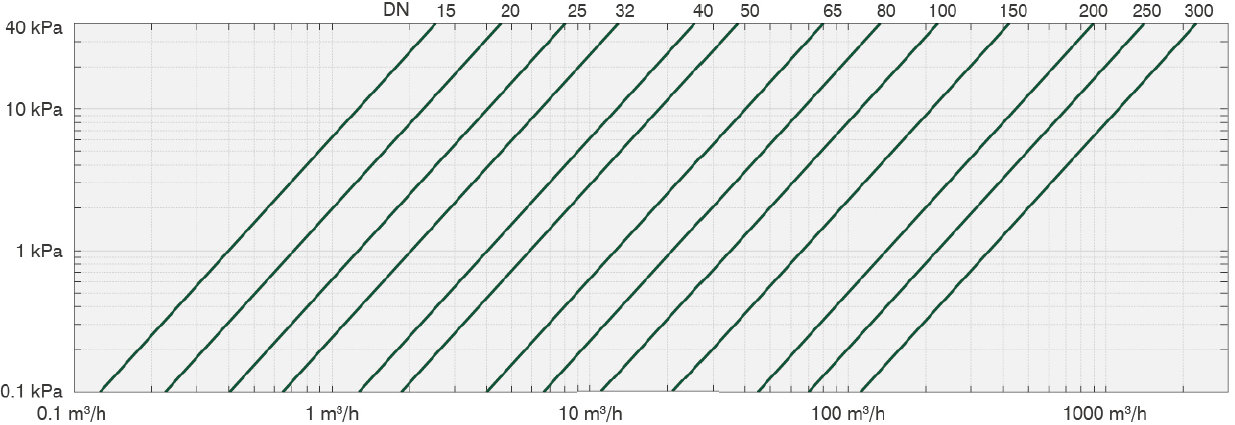

Pressure Loss Curve

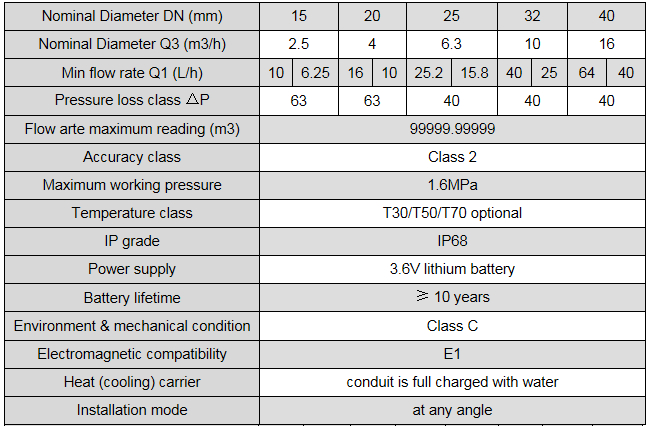

Technical Parameter

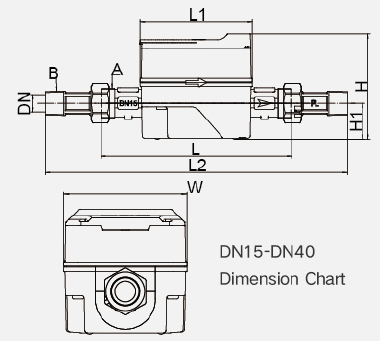

Dimension:
